Halifax to Quebec City heritage buildings as diorama reference

What to take away

Why Halifax and Quebec City heritage stock makes good diorama reference

Halifax and Quebec City sit at opposite ends of the same story. One is a British colonial port rebuilt in stone and timber after repeated fires. The other is a fortified French city whose walls still stand. Between them you get most of the vocabulary a Canadian miniature maker needs.

Both cities have dense, walkable heritage districts. You can photograph a facade, then walk around the block and photograph its back. That matters because dioramas are usually seen from one angle, but the walls you build still need to close.

Halifax has a Maritime climate: salt air, fog, freeze-thaw cycles. Quebec City has colder, drier winters and heavier snow loads. Those conditions shaped roof pitch, eave depth, foundation height and window placement. Copying those decisions makes a miniature read as Canadian rather than generic.

The reference material is also unusually accessible. National heritage listings, provincial culture departments and municipal archives all publish descriptions and, in many cases, drawings. For a wider sense of what Canadian heritage bodies publish, the federal culture, history and sport resources are a reasonable starting point.

One caution. Heritage architecture is protected. You can photograph and measure from public space, but do not assume you can enter, climb or take rubbings. Read the rules before you travel with a tape measure.

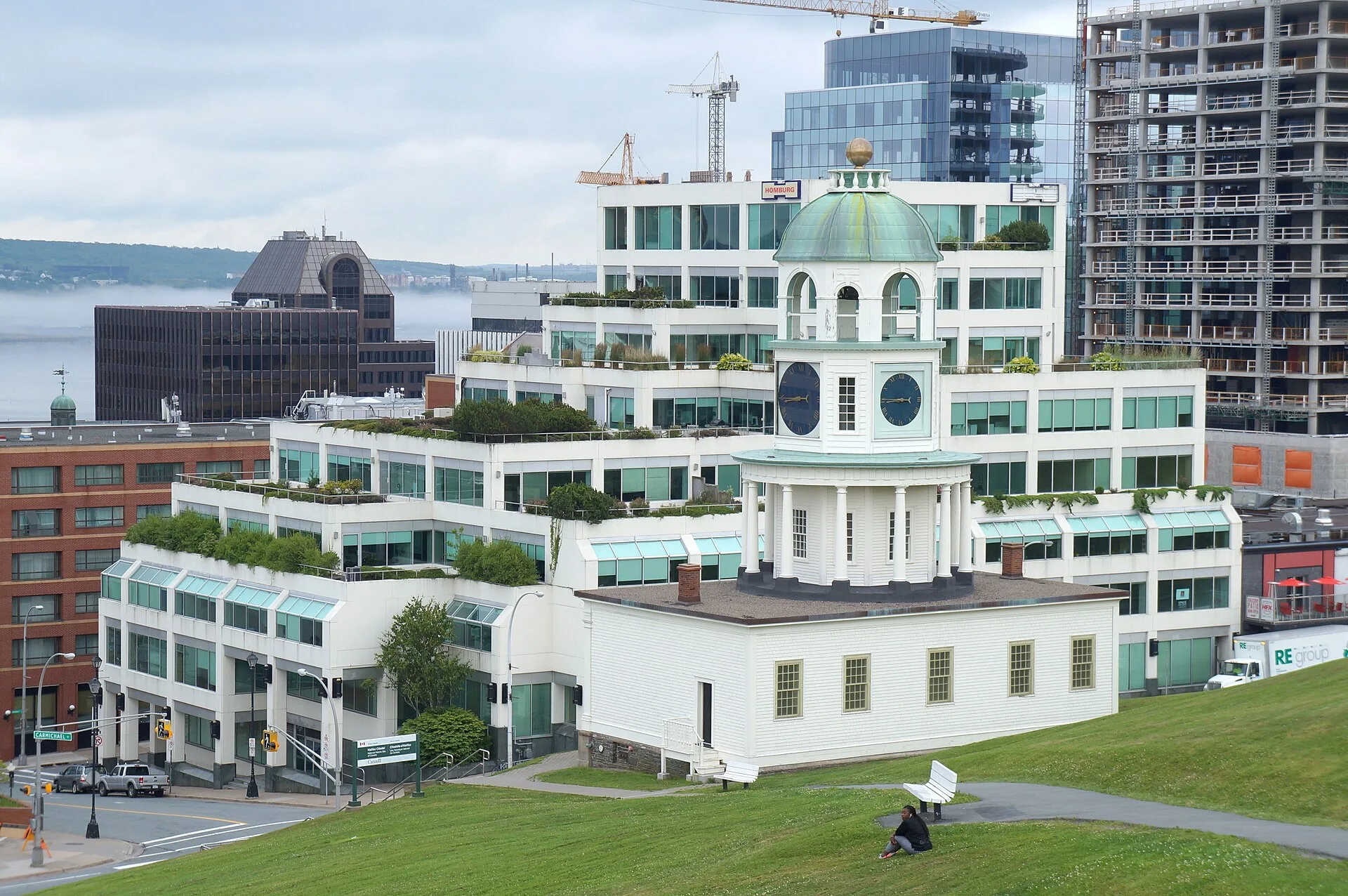

Halifax buildings and archives worth measuring

Start on the Halifax waterfront and work uphill. The city's heritage stock is concentrated, which means you can gather a full reference set in a day.

Province House, on Hollis Street, is the obvious first stop. Completed in the early nineteenth century, it is a stone Georgian building with a symmetrical facade, a pedimented portico and regularly spaced sash windows. The symmetry is the point: it gives you clean, repeatable dimensions for a facade study.

St. Paul's Church, on Barrington Street, is one of the oldest surviving buildings in the city and one of the oldest Protestant churches in Canada. Its timber frame, small-paned windows and weathered exterior are useful for anyone modelling early colonial construction.

Halifax City Hall, on Argyle Street, gives you a later Victorian civic style: mansard roof, heavy cornice, arched openings on the ground floor. If you want a single building that teaches cornice depth, this is it.

The Halifax Citadel and the Halifax Public Gardens add two more registers. The Citadel gives you fortification masonry, embrasures and earthworks. The Public Gardens gives you a Victorian pleasure ground with a bandstand, gates and a horticultural hall.

Pier 21 and the Canadian Museum of Immigration at Pier 21 are worth a visit for interior reference: industrial brick, steel columns, large multi-pane windows. Interiors are harder to find than facades, so take the chance when it appears.

For archives, begin with the Nova Scotia Archives on University Avenue. It holds photographs, maps, architectural drawings and building files. The Halifax Regional Municipality also maintains heritage property files and sometimes registers, which describe materials and alterations.

Provincial heritage and development programmes, described through the Nova Scotia Department of Growth and Development, set the context for how these buildings are recorded and maintained.

Quebec City buildings and archives worth measuring

Quebec City rewards a slower visit. The old town is a UNESCO World Heritage site, and the density means you can study a dozen facades without crossing a road.

Notre-Dame de Québec Basilica-Cathedral on rue de Buade is the anchor. Its stone facade, twin towers and layered entrance give you a full set of architectural orders to measure in one place. The interior is equally useful for a miniature chapel or sacristy scene.

Château Frontenac dominates the skyline and is a study in roofscape: steep pitches, dormers, turrets and copper details. You will not model the whole thing, but one dormer or one turret makes an excellent standalone piece.

Place Royale and the Notre-Dame-des-Victoires Church show the French regime domestic and religious scale. Low ceilings, thick stone walls, small windows and shutters. This is the reference set for anyone building a seventeenth or eighteenth century Canadian room.

The Ursuline Monastery and the Hôtel-Dieu de Québec add institutional stonework and long, repetitive window bays. Repetition is useful: measure one bay carefully and you have the whole wall.

Rue du Petit-Champlain and the Quartier Petit Champlain give you narrow frontages, steep roofs and shopfronts. For a book nook or a street slice, this is the most efficient block in the country to study.

For archives, the Bibliothèque et Archives nationales du Québec holds photographs, notarial records and architectural drawings. The Ville de Québec publishes heritage inventories and property records. Provincial culture programmes, indexed through Culture | Gouvernement du Québec, point to museums and documentation centres that hold reference material.

If you want a comparison point outside Quebec, Saskatchewan's parks, culture and heritage resources show how a very different prairie heritage stock is documented, which is useful when you want to check whether a detail is regional or national.

Scaling trim, cornice and moulding from real dimensions

The method is division, done once, written down, then never recalculated. Pick your scale, divide every real dimension by that number, and keep a conversion sheet on the bench.

At 1:12, one real millimetre is 0.083 mm. That is awkward. Work the other way instead: one millimetre on the model equals 12 mm real. So a 300 mm crown moulding becomes 25 mm, and a 100 mm baseboard becomes 8.3 mm.

At 1:24, one millimetre on the model equals 24 mm real. The same 300 mm crown becomes 12.5 mm and the 100 mm baseboard becomes 4.2 mm. If you are still deciding between the two, this 1:12 vs 1:24 comparison covers the trade-offs.

Here is a worked example. You measure a Halifax doorway with a 2,100 mm opening, a 150 mm architrave and a 250 mm cornice above it.

Now the practical part. At 1:12 you can build moulding from stripwood and profile it with a scraper or a small plane. At 1:24 you cannot. Below about 1 mm, a profile reads as a line, not a shape. Use a single strip with a chamfer, or a printed profile, and let the shadow do the work.

Keep a notebook of every measurement you take, with the building name and the date. Memory is unreliable after a week. Photograph the tape against the detail so you can check the number later.

This is where proportion and restraint pays off. A cornice that is 2 mm too deep is invisible in isolation and obvious in a room.

Stone, brick and clapboard texture at 1:12 and 1:24

Texture is where scale breaks down fastest. A technique that looks right at 1:12 looks coarse at 1:24, and a technique that looks right at 1:24 looks flat at 1:12.

Stone. Quebec City's French regime walls are rubble and cut stone with wide, irregular joints. At 1:12, carve individual stones into a plaster or foam base and vary the size. At 1:24, carve fewer, larger shapes and rely on a wash to suggest the joints. Real mortar joints are roughly 10 to 15 mm, which is about 1 mm at 1:12 and half that at 1:24.

Brick. Halifax has less brick than Ontario, but Victorian commercial blocks use it. A standard brick is about 200 mm long, 100 mm wide and 65 mm high. At 1:12 that is roughly 17 mm by 8 mm by 5.4 mm. At 1:24 it is 8 mm by 4 mm by 2.7 mm, which is small enough that individual bricks stop being worth the effort. Use embossed sheet or a scored pattern instead.

Clapboard. Halifax's wooden houses use overlapping boards, commonly 150 mm to 200 mm exposure. At 1:12 that is 12.5 mm to 17 mm per course. At 1:24 it is 6 mm to 8 mm. Cut strips to width, overlap them, and sand the edges slightly so light catches the shadow line.

Slate and shingle. Roofs are the largest single surface in most dioramas. At 1:12, individual slates are worth cutting. At 1:24, use a scored sheet and paint the courses.

Before you commit material to a facade, test it. A weekend spent on miniature room skills with scrap will save a finished wall. It also helps to choose materials with the finish in mind, not just the colour.

Windows, shutters and doors: proportions that read correctly

Windows are the fastest way to date a building and the fastest way to make a miniature look wrong. Get the opening and the reveal right before you worry about muntins.

Measure four things at every window: opening width, opening height, sill height above floor, and wall thickness at the reveal. Wall thickness is the one people forget, and it is what makes a stone building feel solid.

Sash windows in Halifax Georgian buildings are typically taller than they are wide, often close to a 1:2 ratio. Quebec City's older windows are smaller and squarer, with heavier frames and external shutters. Copy the ratio, not the style.

Muntin bars are a trap. A real glazing bar might be 40 mm wide, which is 3.3 mm at 1:12 and 1.7 mm at 1:24. At 1:24, use a printed or etched pane insert. At 1:12, stripwood works if you keep the bars thin and consistent.

Shutters should be sized to cover the opening, not the frame. Measure a real pair and note the louvre count. A shutter with too many louvres reads as a modern reproduction.

Doors follow the same logic. Note the panel layout, the rail widths and whether the door sits flush or recessed. A recessed door with a deep reveal instantly reads as older construction.

Once the shell is right, small interior props finish the scene. If you are adding a desk or a shelf, learning to make miniature books is a cheap way to add period detail without more measuring.

Where to find measured drawings and photo archives

Measured drawings save hours and reduce error. They are also scattered, so it helps to know which type of institution holds what.

A short checklist for a reference visit:

Photograph in flat light if you can. Raking light exaggerates texture and will mislead you about joint depth. Overcast days in Halifax are common and useful; Quebec City's winter light is low and long, which is good for roof and cornice shadow studies.

Store your reference set by building, not by detail type. When you sit down to build, you want everything about one facade in one place.
