Lighting a miniature scene on Canadian 120 V power, a wiring checklist

What to take away

Matching a scene to Canadian 120 V supply

Canadian outlets deliver 120 V at 60 Hz. Your LEDs never see that voltage. The wall connection happens at the driver or wall wart, and everything upstream of the LEDs is a mains product.

Add up the load first. A standard 3 mm LED draws about 20 mA at 3 V, so ten of them need roughly 0.6 W at the LED side. The driver pulls more from the wall because of conversion losses, but the output rating on its label is the number you match against.

Read the input rating on every supply before you buy. It should say 100 to 240 V, 50/60 Hz. That range covers Canadian supply. A supply marked 230 V only needs a step-up transformer, which is bulky and wasteful for a shelf scene.

Frequency matters less for LED drivers than for motors or clocks, but 60 Hz is the Canadian norm. A driver rated 50 Hz only may run hot or buzz. If the label reads 50/60 Hz, it is fine.

Natural Resources Canada publishes energy ratings for many electrical products, and those ratings let you compare driver efficiency before buying. The product energy ratings page explains what the labels mean.

Long winter evenings in Calgary, Edmonton, Toronto, Ottawa and Halifax push many makers to run scenes for six or eight hours at a stretch. That makes driver heat worth checking, not just brightness. A driver wasting 2 W as heat inside a sealed base will warm a miniature room more than you expect.

Plug types, adapters and what never goes in an outlet

Canadian outlets take NEMA 1-15 and NEMA 5-15 plugs. The 5-15 carries a grounding pin; the 1-15 does not. Most miniature drivers arrive with a two-prong 1-15 plug or a wall wart with integral prongs.

Imported kits often ship with a Europlug, a UK type G or an Australian type I. None fit a Canadian outlet. You have three choices: buy a Canadian driver, use a certified plug adapter, or have a CSA certified plug fitted.

An adapter changes pin shape only. It does not change voltage. If the imported driver is 230 V only, an adapter will not make it safe on 120 V. It may run weakly, buzz, or fail outright.

Adapters for imported lighting should carry CSA, cUL or ETL marks. An unmarked adapter can overheat at the pins. The Canada Border Services Agency may assess duty and GST/HST on imported kits, and returns cross a border, so buy adapters locally where you can. For current rates, check with CBSA or a qualified accountant.

Never plug a bare LED into an outlet. Never cut a barrel plug off a driver and twist the wires into a plug. Never use a lamp cord as a permanent feed. Each of those bypasses the driver and puts full mains voltage on small wires.

A switched power bar with a certified rating is a reasonable way to run several drivers from one point. Keep it outside the scene, not hidden under foam.

Reading CSA Group marks on miniature parts

CSA Group writes the standards for electrical components sold in Canada. A certified part carries a mark: CSA, cUL, cETL or another recognised mark. The mark means the part passed testing for its stated use.

The parts that matter in a miniature scene are the driver, the plug, the wire and any switch. LEDs themselves run low voltage and are rarely certified. The driver feeding them is a mains product and is where the mark counts.

Look for the mark on the driver body, not only on the box. Counterfeit marks exist. A mark on a sticker that peels off is suspect; a genuine one is moulded or printed permanently.

Wire gauge matters too. Low-voltage runs under 1 A commonly use 22 to 26 AWG. Inside a scene, use the wire supplied with a certified driver, or replace it with the same or larger gauge and the same temperature rating.

CCOHS sets out how workplace safety standards apply to tools and finishes. The CCOHS standards framework is worth reading even for a home bench, because the habits transfer: eye protection, ventilation and a fire extinguisher within reach.

Choosing a driver and matching the load

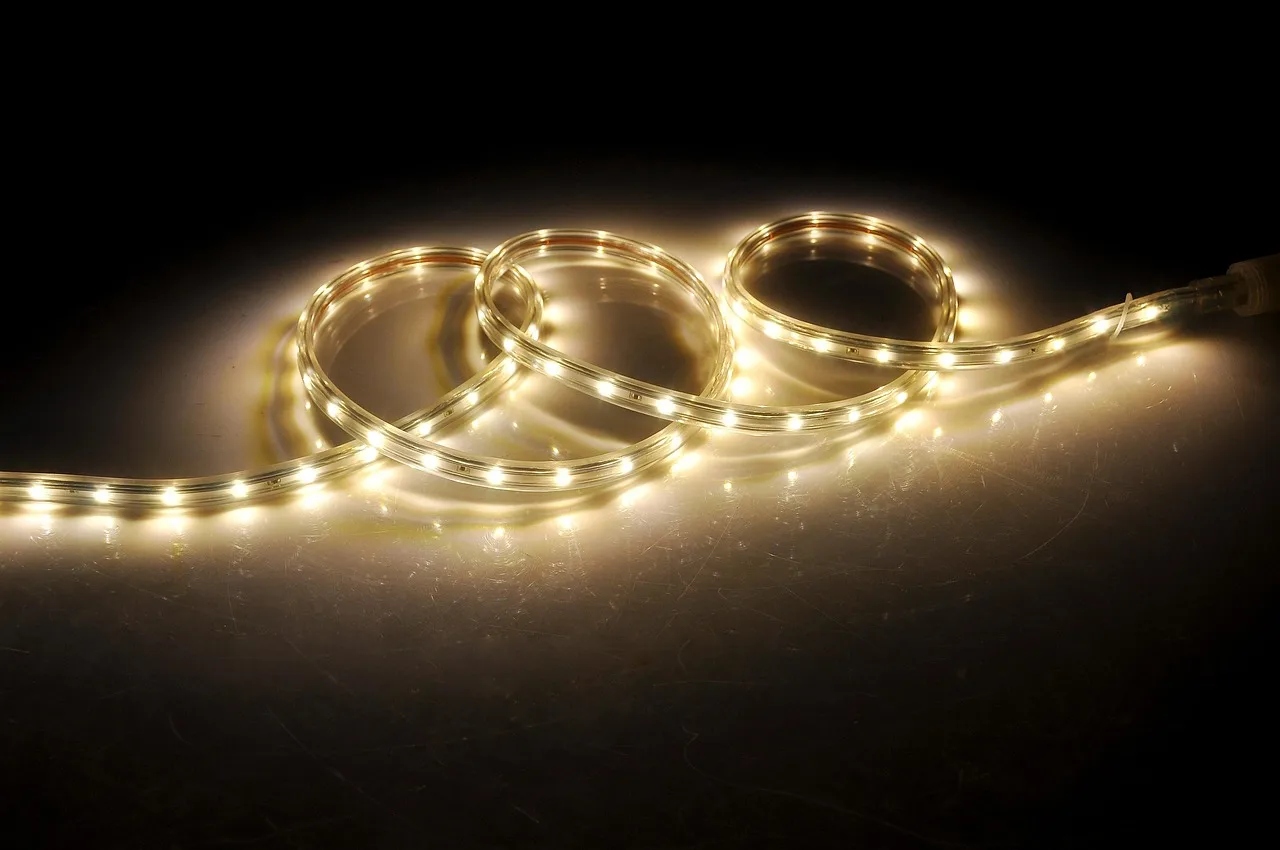

Low-voltage LED drivers come in two types. Constant voltage drivers hold a fixed output, usually 12 V or 24 V, and suit LED strips and parallel-wired LEDs. Constant current drivers hold a fixed current and suit series-wired LEDs.

Match the driver to the load. Add the wattage of every LED and strip section, then choose a driver rated at least 20 percent above that total. A 12 W load wants a 15 W driver or larger. Headroom keeps the driver cool and lengthens its life.

Voltage drop matters on long runs. A 12 V strip at the far end of a 2 m run may see 11 V or less, which dims the far LEDs. Use thicker wire, or split the run into two feeds from the driver.

Dimmability is a separate feature. Many constant voltage drivers are not dimmable. If you want dimming, buy a dimmable driver and a compatible dimmer. Mixing brands often causes flicker.

ENERGY STAR Canada identifies products that meet efficiency criteria, and the ENERGY STAR Canada listing helps when a scene runs nightly. Natural Resources Canada also sets Energy Efficiency Regulations covering many electrical products; the Energy Efficiency Regulations page lists what is covered.

For a small scene, a 12 V 1 A driver (12 W) covers a lot of LEDs. A 24 V 0.5 A driver does the same work with less current and less voltage drop, which suits long thin runs.

If lumens, lux and colour temperature are still unfamiliar, the way diorama lighting works is the place to start, because brightness and colour change the look of a scene far more than they change the driver load.

Insulation, strain relief and heat

Insulation is what stands between a working scene and a short circuit. Strip only the ends you need. A nick near a bend can expose copper and short against foil or wire mesh.

Heat shrink seals a splice better than tape. Tape dries and peels in a warm scene. A short piece over each joint, and a larger piece over the bundle, keeps the run tidy and closed.

Strain relief stops the cord pulling on the solder joint. Tie a knot inside the base, use a cable clip, or anchor with a small zip tie. Any tug on the cord should reach the anchor, not the LED.

Heat is the quiet enemy. Drivers warm in use, and one buried in foam or sealed into a base cannot shed that heat. Leave air space around it, or mount it outside the scene.

Keep mains wiring away from scenery. Paper, foam and dried moss ignite easily. Route mains cable along a metal or ceramic channel, or keep it outside the display entirely. Soldering irons and hot glue guns are the usual ignition sources on a bench; CCOHS covers workshop hazards including burns and fire risk. Unplug irons when you leave.

If the scene uses a metal frame or foil, no live conductor may touch it. One stray strand can energise the whole frame. Test with a multimeter before applying power.

Battery or mains for a book nook

A book nook is a small enclosed scene, often on a shelf. Battery power suits it because no cord shows and no mains voltage sits inside the box. Three AA cells give 4.5 V, enough for several LEDs with resistors.

Battery life follows the load. Ten LEDs at 20 mA draw 200 mA. A set of alkaline AAs at 2000 mAh would last roughly 10 hours in theory, less in practice. Fit a switch so the cells are not draining when the scene is off.

Mains suits a book nook that runs for hours every evening. A certified 12 V driver and a hidden cable give steady brightness with no battery changes. The trade-off is cable routing and driver cooling.

If you want to hide cords in a battery build, the methods in battery LED lights for a book nook cover channels, false backs and switch placement. For scenes with many LEDs, mains wins on cost and upkeep. For shelf pieces that get moved, battery wins on safety and simplicity.

Whichever you choose, the same rules apply: correct polarity, secure joints, no exposed conductors. Battery voltage is low, but a short can still heat a wire and scorch scenery.

A wiring checklist before the first power-up

Run this every time you finish a scene. It takes five minutes and catches most faults before they cost you a build.

Work through it in order and fix any failure before moving on. If a driver is warm to the touch after ten minutes, it is overloaded or poorly ventilated.

A few habits help after that. Label each driver with its voltage and wattage. Keep a spare fuse or power bar on hand. Store wire and heat shrink out of sunlight, because UV makes insulation brittle, and good diorama lighting storage keeps parts ready for the next build.

If you would rather practise before wiring a full scene, pick a small build that teaches one diorama lighting skill at a time. A single LED and a resistor on a breadboard is a safe first step.

Buying tools is its own decision, and the points in diorama lighting gear that matter for first-time buyers can save you from overspending on a driver you do not need.

Common questions

Can I run a UK or European driver in Canada with just a plug adapter?

Only if its input label reads 100 to 240 V, 50/60 Hz. A 230 V only driver will not run safely on Canadian 120 V supply, and an adapter changes pin shape, not voltage. Check the label before you plug anything in.

Do the LEDs themselves need CSA certification?

No. LEDs run at low voltage and are rarely certified. The driver, plug, switch and mains wiring do need recognised marks, because that is where household voltage enters the build.

How many LEDs will one 12 V 1 A driver run?

It depends on the wattage of each LED. Ten standard 20 mA LEDs draw about 0.6 W, so a 12 W driver has ample headroom. Stay at least 20 percent below the driver rating and check the driver is not warm after ten minutes of running.

What should I check if the driver feels hot?

Check the total load against the driver rating, confirm it has air space, and look for a short or reversed polarity. A driver that still runs hot after those checks is undersized or faulty, and belongs on a bench, not in a scene.
