A weekend of lighting drills built around one test box
Two days of lighting experiments on a single test box: one emitter moved everywhere, warm against cool, dimming behavior, and a labeled record you keep.
What to take away
- Build one plain test box and spend the weekend moving light around inside it.
- Position beats brightness. Almost every improvement comes from where the emitter sits, not how strong it is.
- Dimming changes color on many products, which is a feature worth understanding before you rely on it.
- Photograph every setup with the same camera settings, or the comparison is worthless.
Saturday morning: build the test box
Make a plain open-fronted box roughly the size of a shoebox, painted mid-gray inside, with no detail at all. Add one movable wall, one window opening and a removable ceiling. That is the instrument. Detail would only distract from what the light is doing.
Cut a few small blocks and a strip of textured card to stand in for furniture and a floor. Gray, again. Color comes later.
Saturday afternoon: one emitter, twenty positions
Take a single small emitter and move it through a fixed set of positions:
- High and central, then high and off to one side.
- Behind the window, shining in from outside.
- At floor level, aimed up a wall.
- Behind a block, so only the spill is visible.
- Hidden behind a lip at the top of the opening.
Photograph each one from the same place with the same manual settings. By the end of the afternoon you will have learned the thing that matters most: a scene lit from a hidden source near the opening looks nothing like the same scene lit from a visible source at the back.
Sunday morning: warm, cool and dimmed
Repeat the best three positions with a warm source and a cool one, then repeat with the source dimmed.
Dimming is where surprises live. The Department of Energy's explanation of color-tunable products describes dim-to-warm designs, also called warm dim or blackbody dimming. They mimic incandescent dimming by starting around 2700 to 3000 K at full output and dropping the color temperature as output falls, down to as low as 1800 K, the color of candlelight.
The same page notes that some dim-to-warm systems combine white LEDs with narrow-band amber ones, so at the very bottom of the dimming range only the amber LEDs are still producing light.
That is worth knowing before you wire a scene. A product that shifts warm as it dims is ideal for an evening interior and wrong for a scene that has to stay neutral.
Sunday afternoon: heat and dust

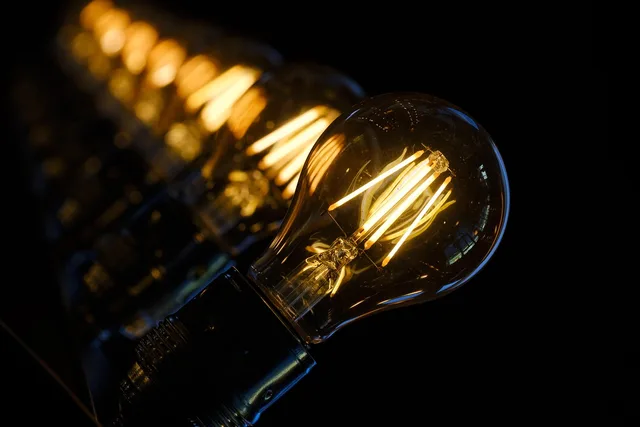

Two practical facts close the weekend. Purdue Extension's sheet on lighting and home energy says incandescent bulbs use 10 percent of their energy for light and 90 percent for heat. It also says dusty bulbs can emit 20 percent less light than clean ones.
That sheet dates from the compact fluorescent era, so its product advice is historical. Both facts are physics, not fashion.
Inside a sealed box, heat has nowhere to go, which is one reason small LED emitters replaced everything else in this hobby. And dust settles on an emitter hidden behind a lip faster than anywhere else in a scene, which is why a nook dims over two years without anything failing.
Finish with a labeled record
Print or file the photographs with the setup written on each: position, source, dimmed or not, camera settings. That sheet is the output of the weekend. The explanation behind what you saw is in how diorama lighting works, and the same weekend approach applied to building rather than lighting is in a weekend practice plan for room ideas.
